Compact 13MP Image Sensor Sony IMX258 Machine Vision USB Camera Module
Product Description:

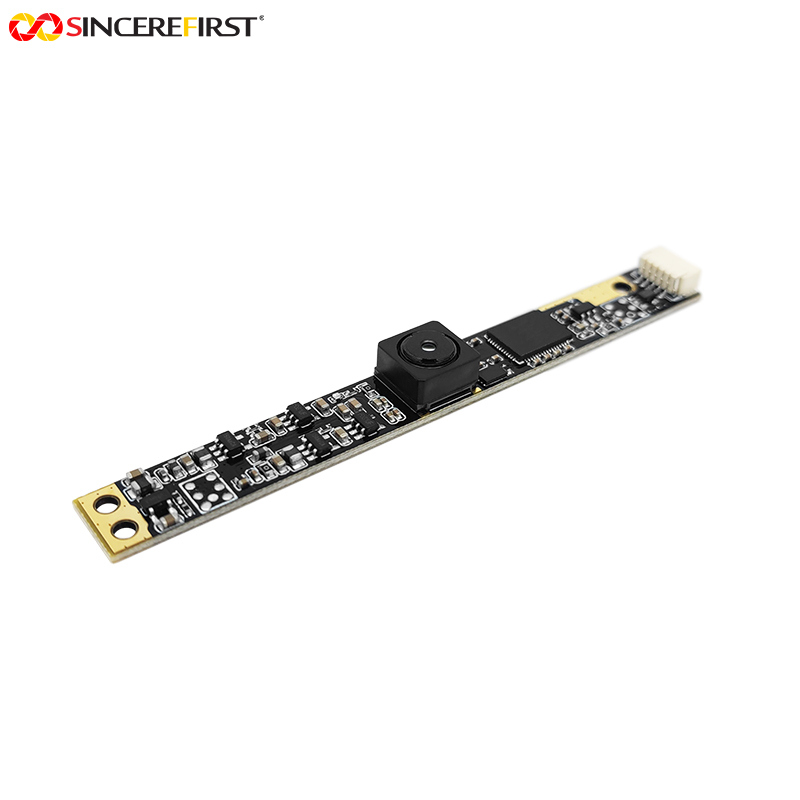

This is a compact 13MP image sensor Sony IMX258 machine vision USB camera module. Centered on the Sony IMX258 CMOS color image sensor, it delivers an imaging device that combines high-definition image quality, flexible adaptability, and stable performance, fully covering the usage needs of diverse scenarios. It incorporates a 13MP effective pixel array, supporting native 4208×3120 full-resolution static output, while also providing two video stream specifications: 4K (3840×2160) @30fps and 1080P @60fps, to meet the requirements of different data processing intensities.
Coupled with a 1/3.06-inch sensor size and 1.12μm×1.12μm pixel size, it achieves dual optimization of detail capture and dynamic recording. In terms of core technologies, it integrates Exmor RS stacked technology, HDR function, and PDAF (Phase Detection Autofocus) function: Exmor RS technology enhances low-light noise reduction capabilities, HDR function balances light-dark contrast, and PDAF function improves focusing response speed—their synergy ensures high-quality imaging in complex environments.
For optical configuration, the module is equipped with an F2.8 aperture and a 72° field of view, adopting a fixed focal length with manual focus design for precise clarity adjustment as needed. It features a rectangular structure with a slim size of only 100mm×10mm, facilitating flexible installation. Equipped with a USB 5PIN interface, it supports USB 2.0 speed and UVC protocol, compatible with mainstream operating systems such as Windows, Linux, and Android, enabling plug-and-play functionality without complex adaptation.
In production, it adopts SMT and AA (Active Alignment) processes to ensure assembly precision and consistency, and has passed multiple international testing and certifications including CE, FCC, RoHS, and REACH, complying with global standards for electromagnetic compatibility and environmental access.
Features:
- True-Color HD Reproduction: Exmor RS technology, combined with 1.12μm×1.12μm pixel size and F2.8 aperture, enables low-noise, high-brightness image output even in low-light environments. The HDR function effectively suppresses overexposure in strong light and underexposure in shadows, while PDAF quickly locks onto targets. Their collaboration allows the module to reproduce true colors and delicate details across diverse lighting scenarios.
- Multi-Scenario Adaptability: Native 13MP full-resolution adapts to high-definition photography and static data collection; 4K @30fps is suitable for recording scenarios requiring high-precision details; 1080P @60fps meets the demand for smooth capture of dynamic images. These three modes can be switched freely, adapting to the core needs of different usage scenarios without additional hardware support.

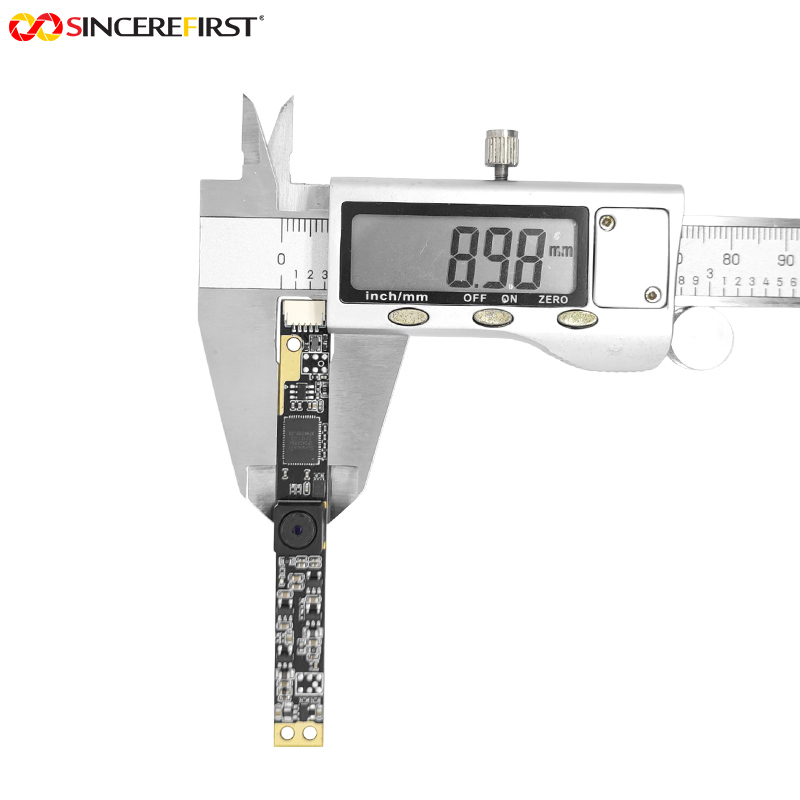

- Minimalist Integration Design: With a slim size of 100mm×10mm, it can be easily embedded into narrow installation spaces. The combination of USB 2.0 and UVC protocol enables cross-system plug-and-play, significantly reducing hardware integration difficulty and software adaptation costs—quick deployment is achievable without professional expertise.
- High-Precision & Compliant Quality: SMT process ensures the module’s structural stability, while AA process guarantees accurate calibration of optical components, preventing issues such as focus shift and image quality degradation during long-term use. Multiple international certifications confirm compliance with global standards for electromagnetic compatibility and environmental safety, enabling unobstructed access to domestic and international markets and adapting to long-term operation needs in commercial, industrial, and other scenarios.
- Diverse Demand Coverage: The 72° field of view evenly covers the shooting range, avoiding both missing scene details and excessive distortion. The fixed focal length with manual focus design is easy to operate, accurately adapting to shooting targets at different distances, and meeting clarity requirements for both daily use and professional scenarios.
Technical Parameters:
| Product Name |
PDAF 4K Camera Module
|
|
Sensor
|
Sony Exmor RS IMX258 CMOS
|
| Piexl |
13MP |
|
F.NO
|
2.8
|
|
Output Interface
|
USB2.0, USB 5PIN |
|
Sensor Size
|
1/3.06 Inch
|
|
Keywords
|
IoT 13MP Camera Module
|
|
Warranty
|
10 Years
|
|
Pixel Size
|
1.12μm
|
|
Brand Name
|
SINCEREFIRST
|
Applications:
- Smart Office Equipment Field: Suitable for office devices such as video conferencing systems and smart whiteboards. 4K resolution delivers clear image details, the 72° field of view is ideal for small-to-medium conference rooms, and UVC protocol ensures plug-and-play functionality.
- Educational Recording & Broadcasting System Application: Can be used for course recording in online education platforms. Multiple resolution output modes meet live broadcast needs under different network environments, and the HDR function ensures balanced image effects under classroom lighting conditions.
- Commercial Display Solutions: Applicable to commercial display devices such as digital signage and interactive advertising displays. PDAF technology enables fast focusing on moving objects, and the fixed focal length design ensures consistent clear imaging within the preset distance.
- Smart Home Vision Systems: Integrated into smart home central control devices, serving as a vision sensor for home security monitoring or video intercom systems. Its compact size facilitates embedding into various smart hardware products.
- Content Creation Auxiliary Tools: Can be used as an auxiliary camera for self-media creation and online live streaming. Support for 4K resolution meets the needs of high-quality content production, and the plug-and-play feature allows non-professional users to deploy it quickly.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
