USB 2.0 OCHFA10 CMOS Machine Vision Endoscope Camera Module
Product Description:
This is a USB 2.0 OCHFA10 CMOS machine vision endoscope camera module, centered on OmniVision’s OCHFA10 color image sensor, creating an all-round solution that balances high-definition imaging, flexible adaptation, and reliable quality. The module features 0.5MP pixels and 720×720 resolution, capable of stably outputting 720P@30FPS high-definition real-time images. The 1/17.5-inch sensor, paired with a 1.008μm×1.008μm pixel size, delivers excellent detail-capturing performance within a compact volume. It supports dual output formats of YUV and MJEPG simultaneously to meet diverse transmission and storage needs; with a field of view (FOV) of H86°×V86°, it is combined with a 0.418mm focal length, F5.0 aperture, and 5~50mm wide focusing range, while TV distortion is controlled at < -11%. The manual focusing design can accurately adapt to multiple detection distances.
The module adopts a Separated structure, connected to the DSP board via bonding wires. Its 1.6mm lens with Steel Shell combines slim size and structural strength, supporting IP67 dustproof and waterproof rating, and integrates 4 LED fill lights to supplement light in dim environments. In terms of interfaces, it is equipped with a Micro USB port, supporting USB 2.0 speed and UVC protocol, and is compatible with mainstream operating systems. Precisely manufactured through SMT process and AA (Active Alignment) process, it has passed multiple international tests and certifications including CE, FCC, RoHS, and Reach, fully covering performance, protection, and compliance requirements.
Features:
- Optimized Performance: The 720P@30FPS frame rate ensures smooth images; the 1.008μm pixel size complements 4 LED fill lights, restoring clear details even in low-light environments. The 86° wide FOV, combined with low distortion control, fully presents the detection area while reducing imaging distortion. Dual output formats adapt to real-time transmission and high-definition archiving scenarios.
- Adaptability to Complex Working Conditions: The 1.6mm lens with Steel Shell achieves the dual characteristics of "slimness + durability"; the Separated structure reduces equipment integration difficulty. The IP67 dustproof and waterproof rating resists liquid immersion and dust erosion, and the Steel Shell material enhances wear resistance, making it suitable for various complex environments such as medical disinfection and industrial oil contamination.

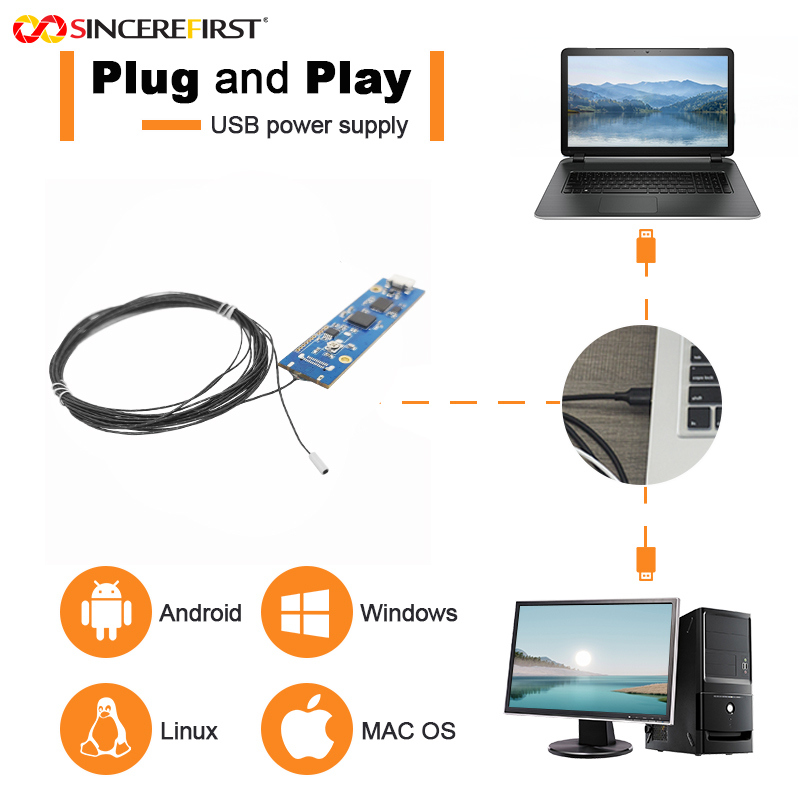

- Low Usage Threshold: The 5~50mm wide focusing range covers both short and long-distance detection needs, with the manual focusing design enabling precise control. The Micro USB interface + UVC protocol supports plug-and-play, requiring no complex driver development, and is compatible with mainstream operating systems, greatly reducing the adaptation and usage costs of terminal equipment.
- Reliable Quality: The SMT process and AA (Active Alignment) process ensure consistency and stability in mass production. The module fully passes authoritative international tests and certifications, meeting strict safety standards in the medical field and complying with environmental protection and compliance requirements in the industrial and consumer electronics fields, providing greater peace of mind during use.
Technical Parameters:
| Product Name |
CMOS Medical Endoscope Camera Module
|
|
Sensor
|
OCHFA10 CMOS Sensor
|
| Resolution |
720x720 |
|
FOV
|
H86°*V86°
|
|
F.NO
|
5.0 |
|
Diameter
|
1.6mm
|
|
Max Frame Rate
|
30FPS
|
|
Interface
|
Micro, USB2.0 |
|
Warranty
|
10 Years
|
|
Certification
|
CE, FCC, REACH, ISO, RoHS |
Applications:
- Disposable Laryngoscope: The 1.6mm slim lens can be easily inserted into the throat area; the IP67 waterproof design facilitates high-temperature disinfection after surgery to prevent cross-infection. 720P high-definition imaging + LED fill lights clearly present the state of vocal cords and throat mucosa, assisting doctors in quickly diagnosing inflammation or foreign body obstruction.
- Internal Inspection Endoscope for Precision Instruments: Suitable for internal maintenance of precision equipment such as watch movements and micro-motors. The 1.6mm lens can penetrate narrow mechanical gaps; 720×720 high resolution accurately identifies subtle issues like gear wear and loose circuits, and manual focusing allows flexible focusing on key parts.
- Household Air Conditioning Pipe Inspection Endoscope: The Micro USB interface can be directly connected to mobile phones or tablets for plug-and-play use. IP67 dustproof and waterproof capability resists dust and condensed water in air conditioning pipes; the 5~50mm focusing range adapts to pipes of different diameters. LED fill lights + wide FOV enable comprehensive observation of dust accumulation and mildew on the inner walls of pipes.
- Veterinary Dental Endoscope: Targeting oral examination needs of pets such as cats and dogs. The 1.6mm slim lens avoids pet discomfort; 4 LED fill lights illuminate the deep part of the oral cavity. 720P high-definition imaging clearly presents issues like dental calculus and gingival inflammation, and the low distortion effect allows veterinarians to accurately diagnose conditions.
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
